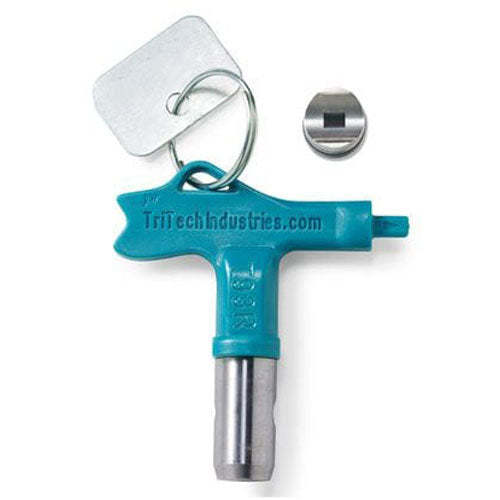

TriTech T93 Reversible Tips
The T93R is available in 145 fan width/orifice combinations so you can match the right tip to every coating you spray. The chart below lists all available sizes. 5000 PSI
While Drake's paint supplies the highest grade spray tips - all spray tips will wear with normal use. Using a worn tip can cost you hundreds of dollars in wasted paint and labor; because when a tip wears the size of the tip orifice increases and the fan width decreases.
Reversible tips, are the most versatile tips on the market. They are available in many sizes and can be used for a wide variety of coatings. With a reversible tip, you can easily clear tip clogs by simply turning the tip 180 degrees to the clean position and then triggering the sprayer. Reversible tips can be quickly replaced without removing the tip guard and housing.
Orifice size - inches (thousandths) | ||||||||||||||||
Fan Size | 0.011 | 0.013 | 0.015 | 0.017 | 0.019 | 0.021 | ||||||||||
4-6 | 200-211 | 200-213 | ||||||||||||||
6-8 | 200-311 | 200-313 | 200-315 | |||||||||||||
8-10 | 200-411 | 200-413 | 200-415 | 200-417 | ||||||||||||
10-12 | 200-515 | 200-517 | 200-519 | |||||||||||||
12-14 | 200-615 | 200-617 | 200-619 | 200-621 | ||||||||||||
24-26 | 200-1221 | |||||||||||||||
Flow Rate (gpm) | 0.45 | 0.68 | 0.91 | 1.17 | 1.47 | 1.78 |
