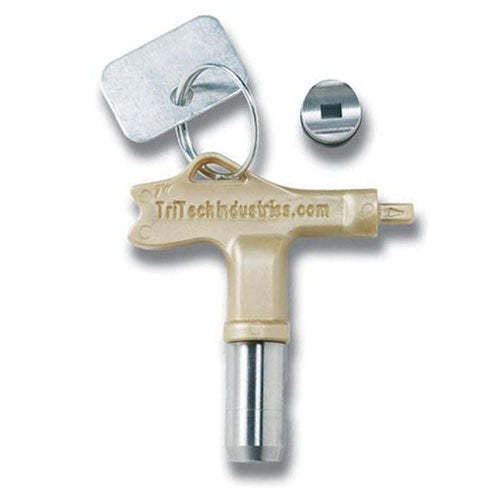

201-208
Unique double-orifice atomizes the coating twice – each time finer than the first to achieve an ultra-fine finish. 28 fan pattern/orifice size combinations are available.5000 PSI
While Drake’s supplies the highest grade spray tips - all tips will wear with normal use. Using a worn tip can cost you hundreds of dollars in wasted paint and labor; because when a tip wears the size of the orifice increase and the fan width decreases.
Orifice size - inches (thousandths) | ||||||||||||||||
Fan Size | 0.008 | 0.010 | 0.012 | |||||||||||||
4-6 | 201-208 | 201-210 | 201-212 | |||||||||||||
6-8 | 201-308 | 201-310 | 201-312 | |||||||||||||
8-10 | 201-408 | 201-410 | 201-412 | |||||||||||||
Flow Rate (gpm) | 0.05 | 0.09 | 0.12 |
